Setup Tailscale for Home Assistant Remote Access

2 min read

Sign up Tailscale

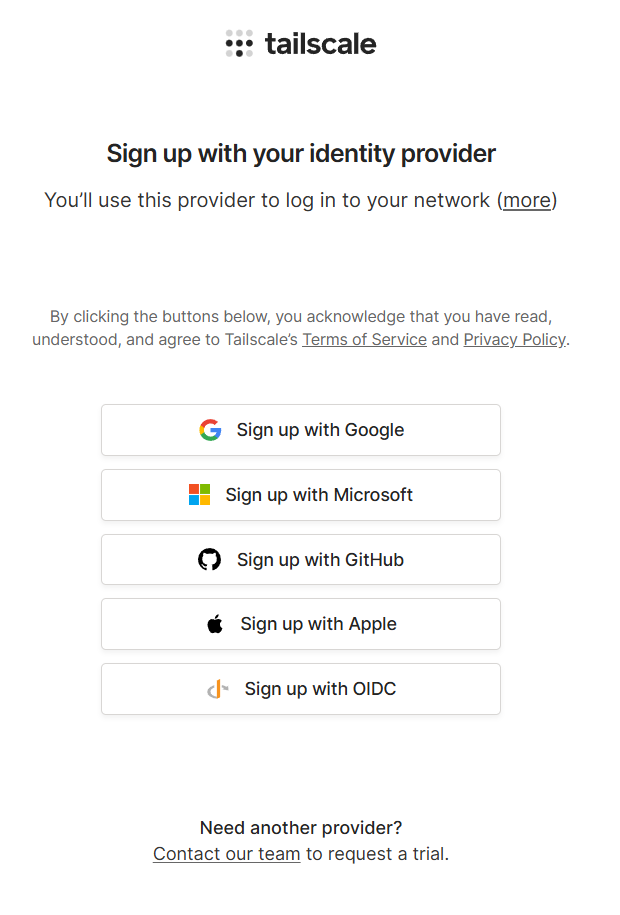

Sign up in Tailscale is using some service like :

  • Google
  • Microsoft
  • GitHub
  • Apple
  • OIDC

I think there isn’t registration using other email provider

Add Other Device

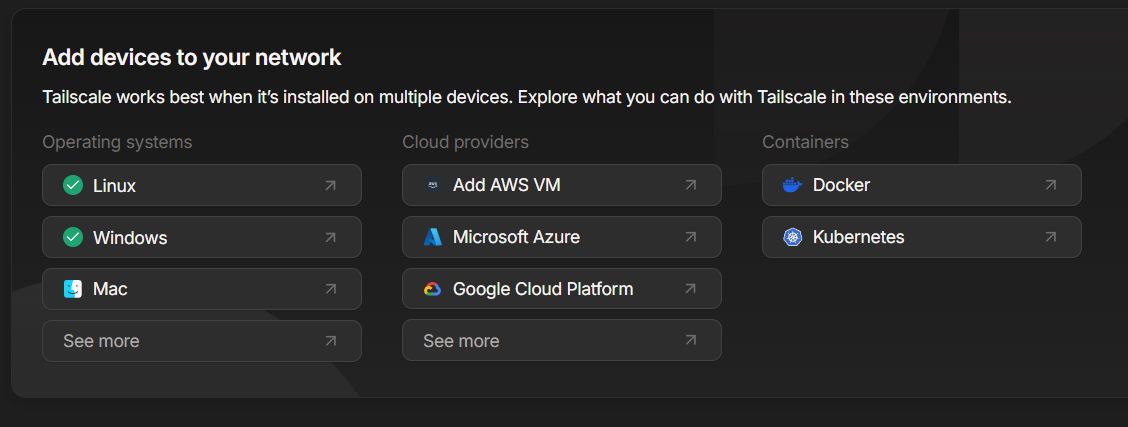

We can install Tailscale on many platform like Android, iOS, Linux, Windows, Mac, AWS, Microsoft Azure, Google Cloud Platform, Docker, Kubernetes, etc.

Android Setup

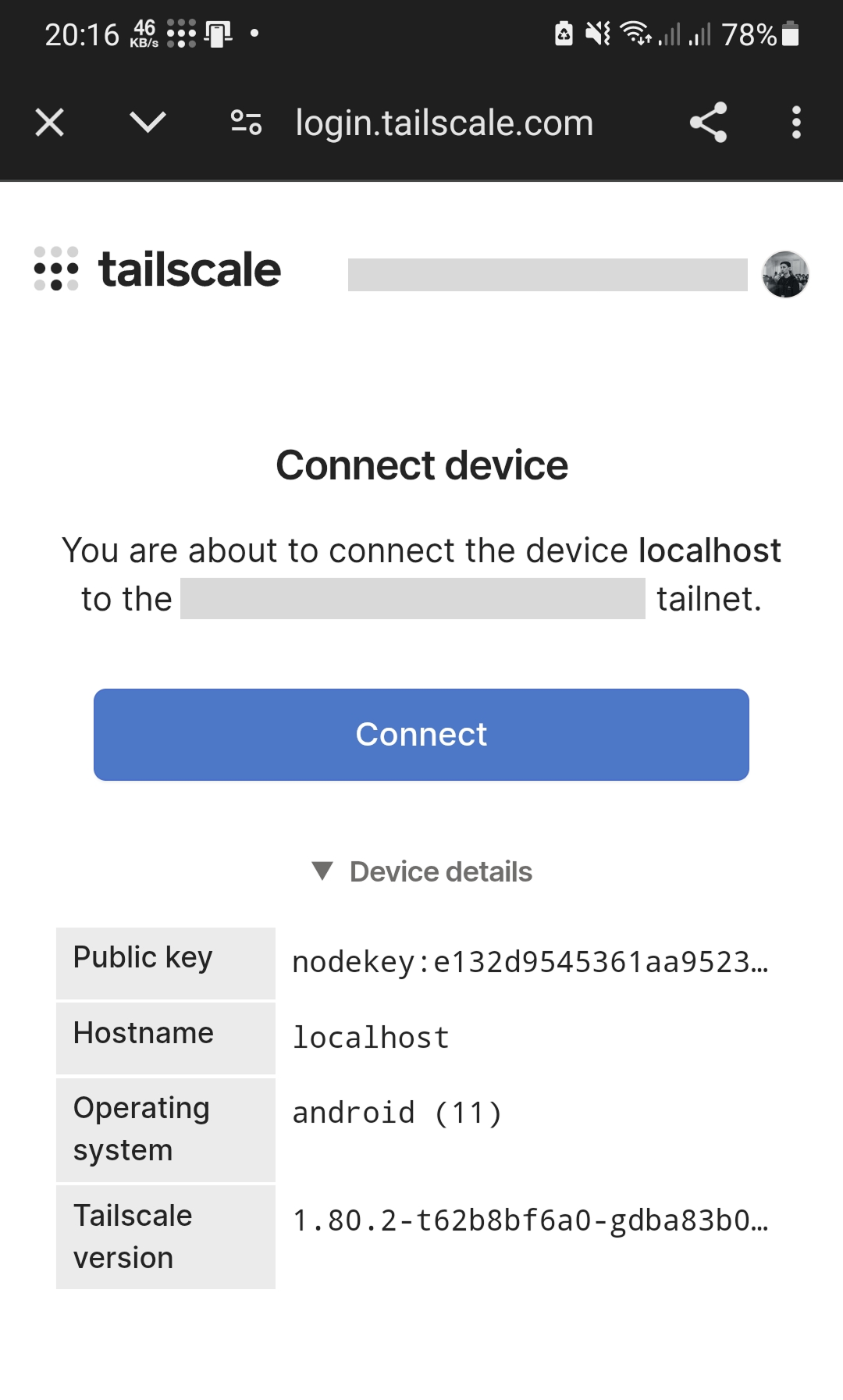

Download Tailscale in Playstore and login using your account, after that add your android device to the Tailscale network

Note

Docs: Install Tailscale on Android

Windows Setup

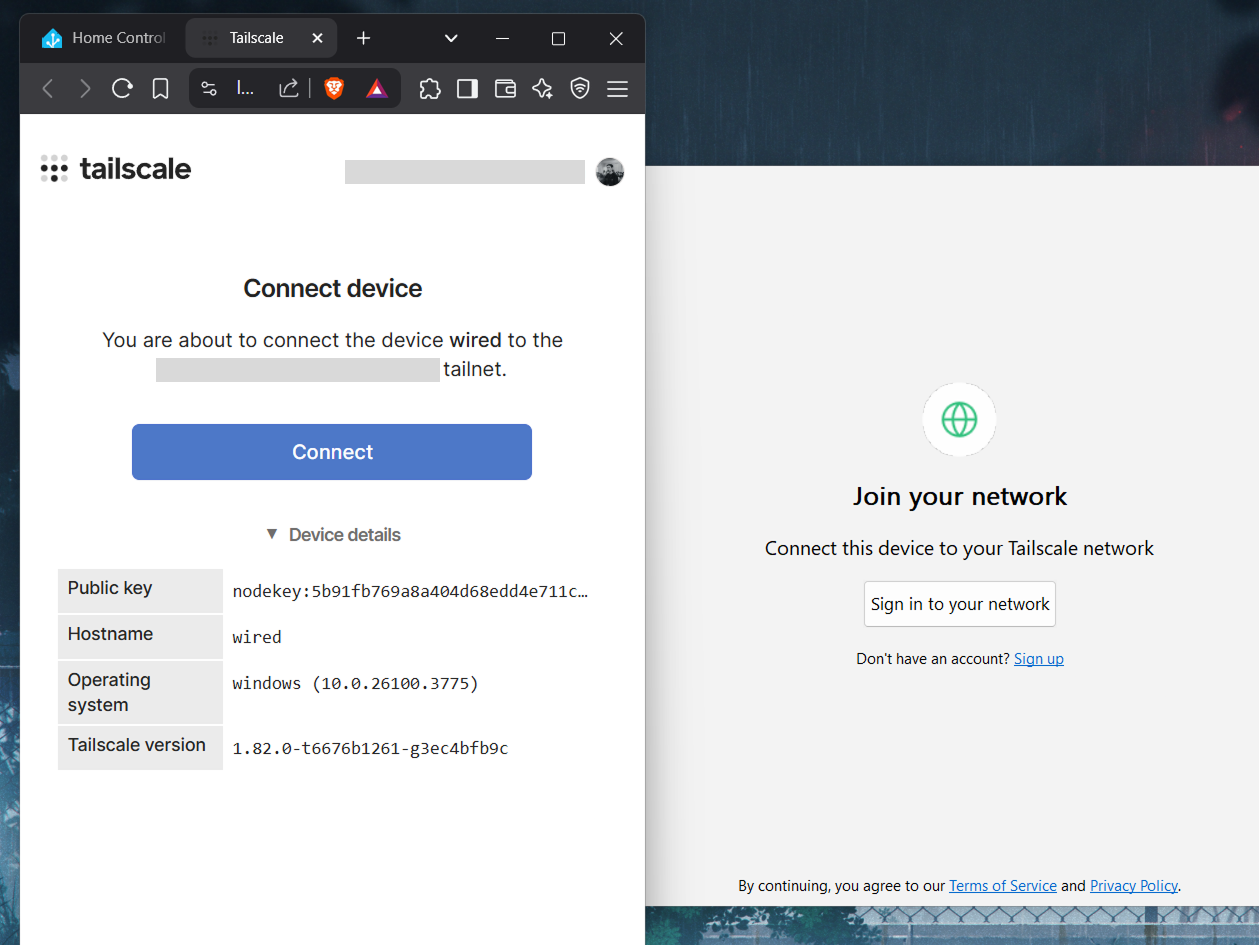

Install Tailscale on Windows Device and connect the device to the Tailscale network

Note

Docs: Install Tailscale on Windows

Tailscale Add-on

Go to Settings → Add-ons → Add-on Store and search “Tailscale”

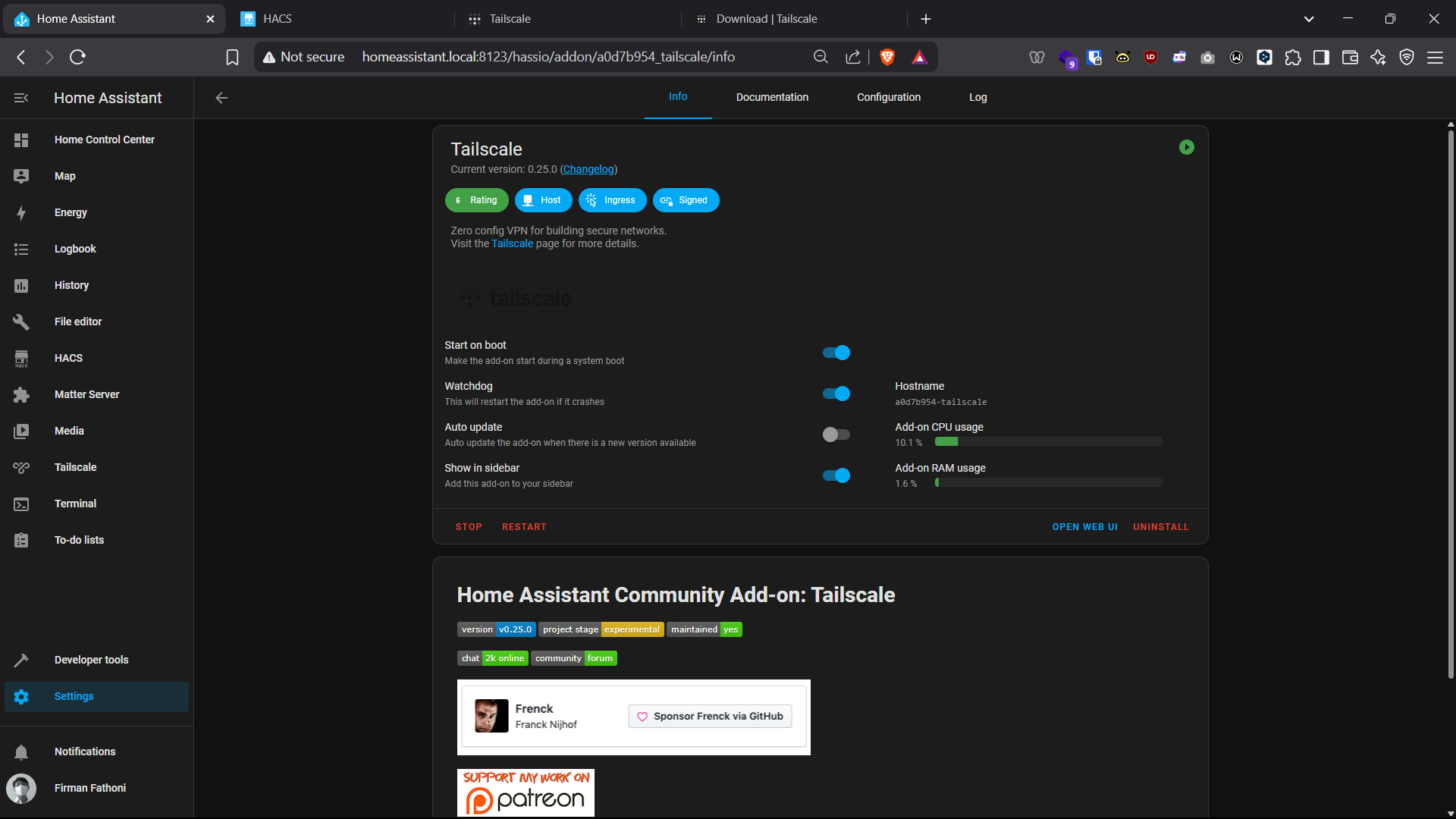

Install and start the Tailscale Add-on

Make sure to enable:

  • Start on boot → Start the add-on during the system boot
  • Watchdog → This will restart the add-on if it crashes

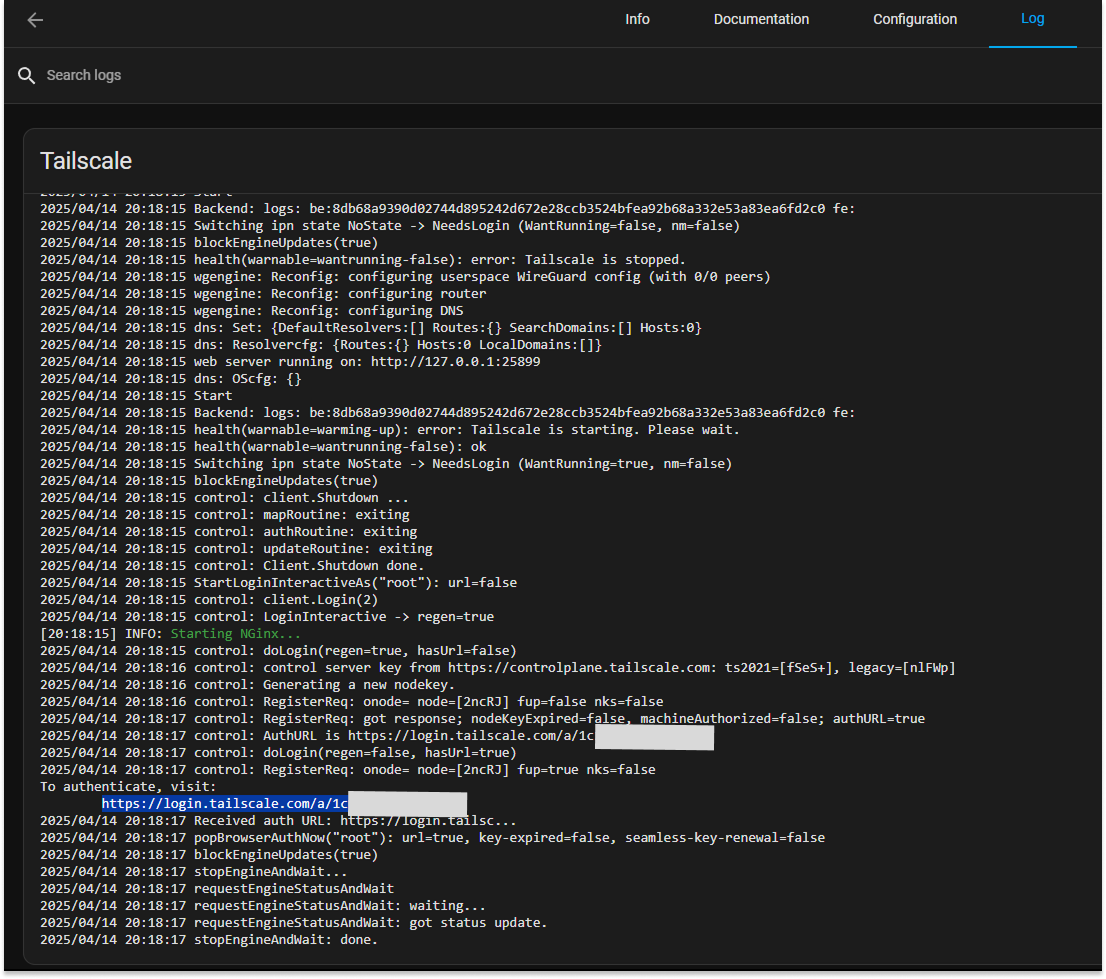

After starting the add-on go to log tab and find the Tailscale authentication/login endpoint

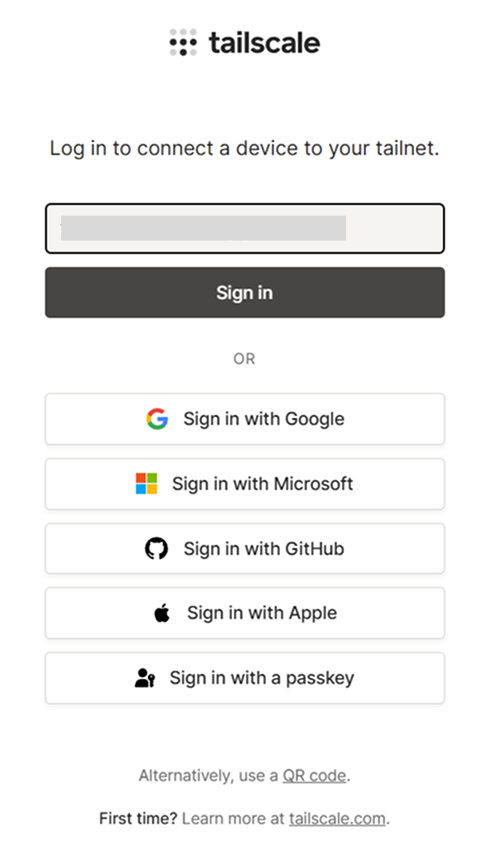

Then login using your account

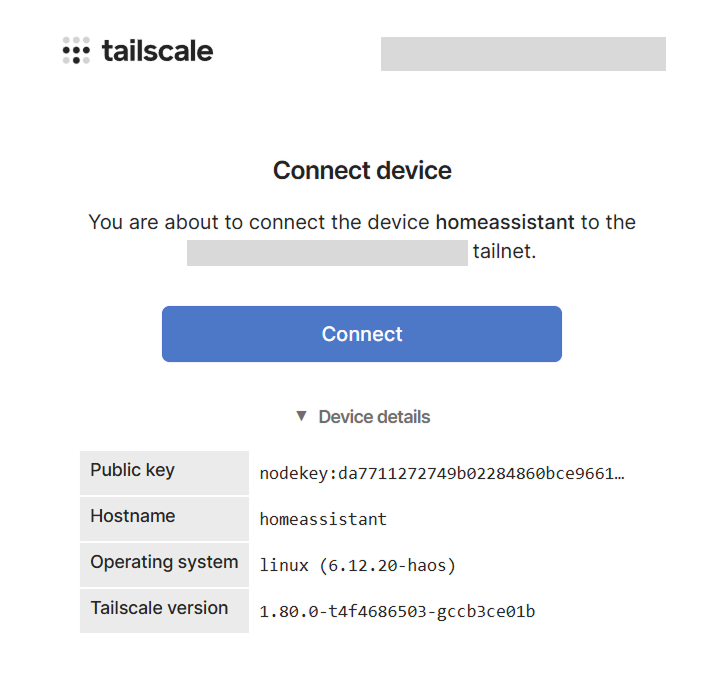

After that connect your Home Assistant server to the Tailscale network

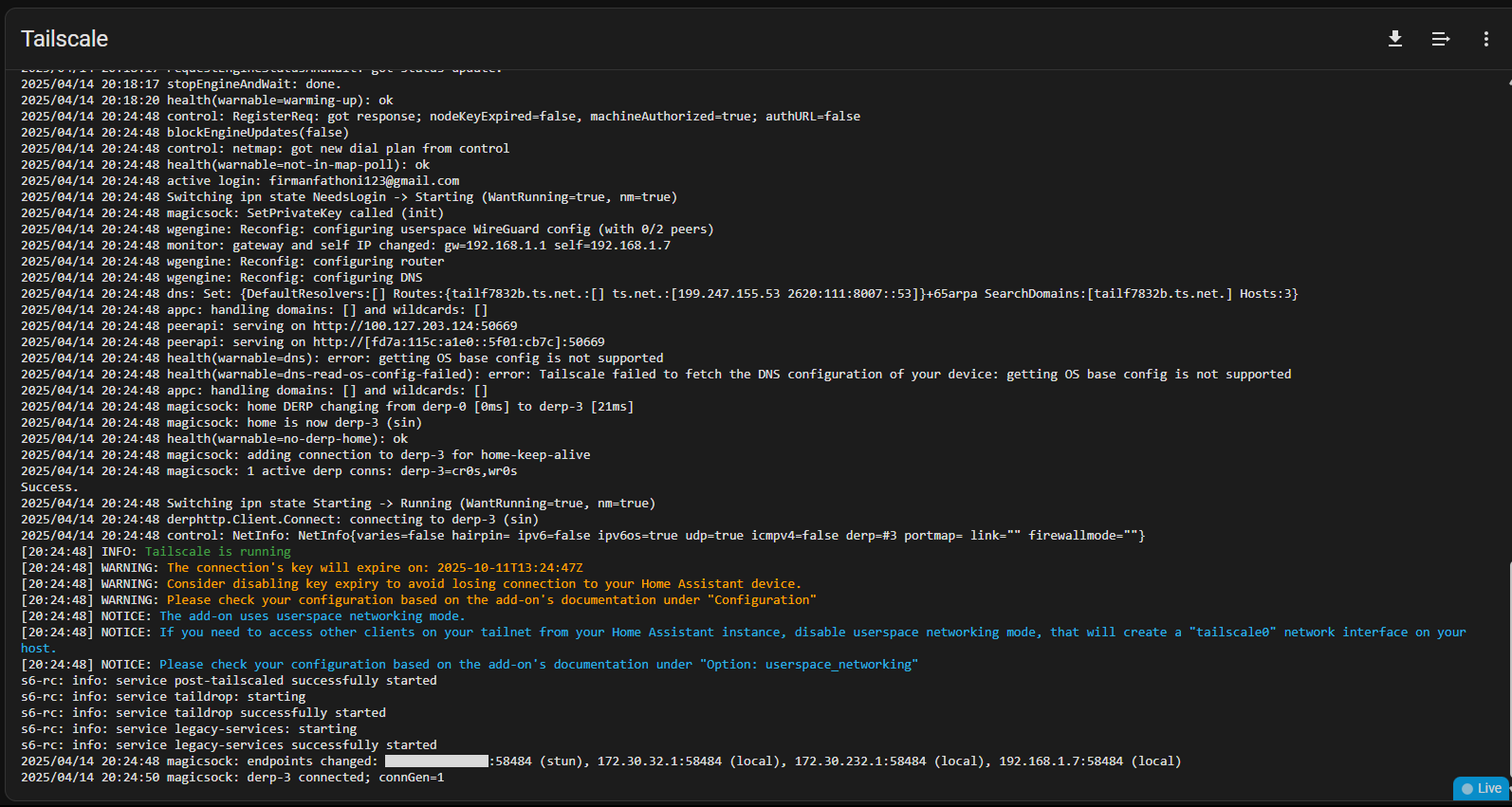

After connecting the devices you should see the “Tailscale is running” on the add-on logs

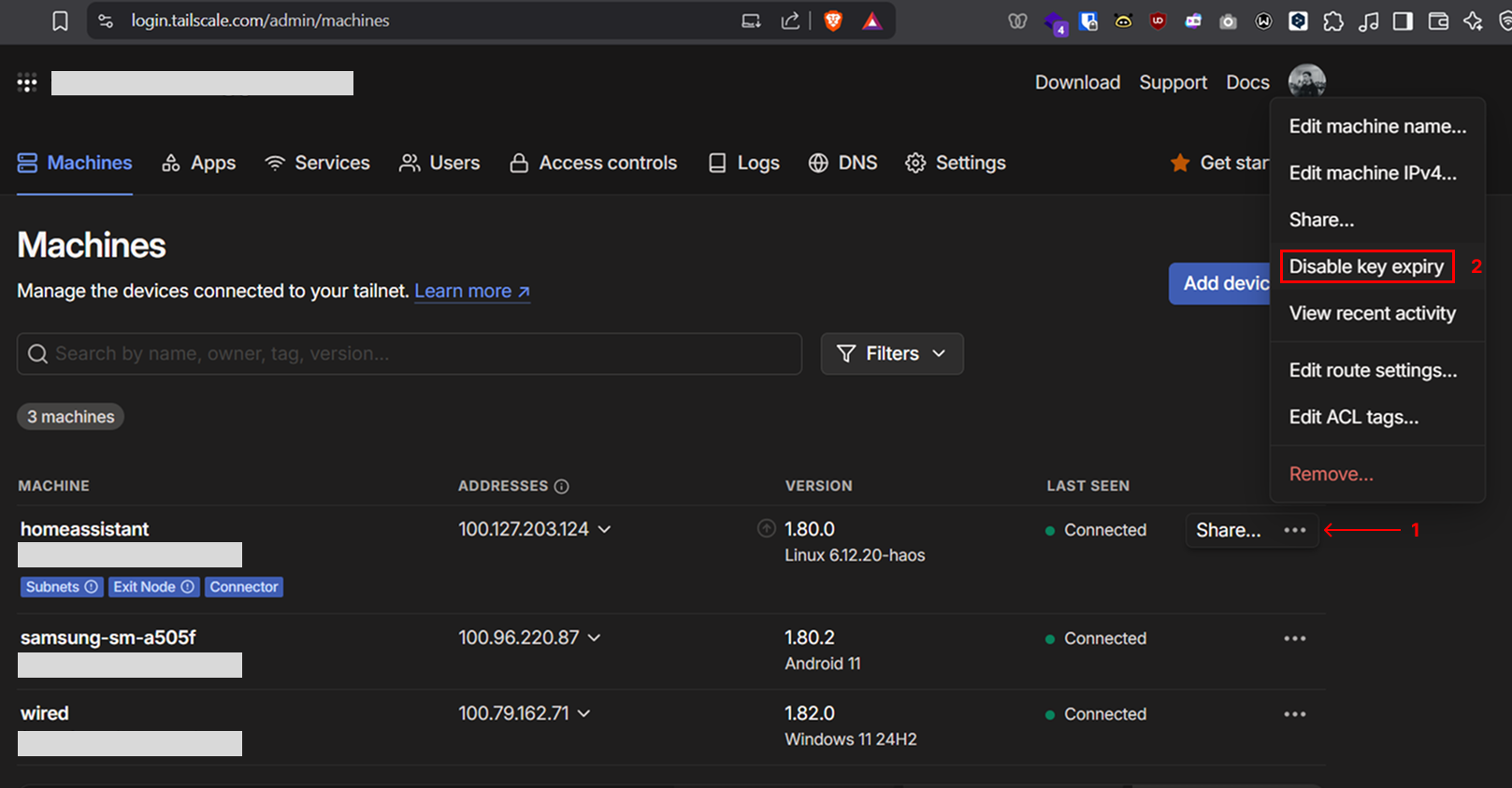

Make sure to disable the key expiry for the Home Assistant machine on the Tailscale admin panel

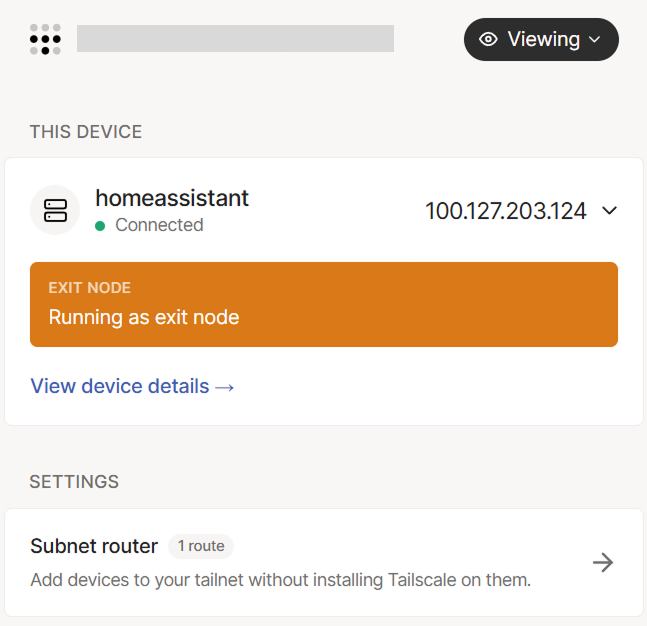

When connected and successfully configured the add-on will be displaying the Tailscale connection status

Exit Node and Subnet Routes

If you want your machine is connected/exposed to the internet you can enable the Exit Node

Also if you want device connectivity, cloud network integration, integrate entire networks you can setup the Subnet Routes

Read more in Configure Subnet Routes & Exit Node on Tailscale

Setup Home Assistant Companion (Mobile Apps)

Reference

Tailscale Configure Subnet Routes & Exit Node on Tailscale
